High-quality gear pumps by Marzocchi

Marzocchi gear pumps andmotors have had a stellar reputation for decades. They are widely applicable, of high quality and produced with high accuracy. All pump and motor product
series at Eurodynamica Hydraulics are available from stock from our warehouse in IJmuiden, The Netherlands.

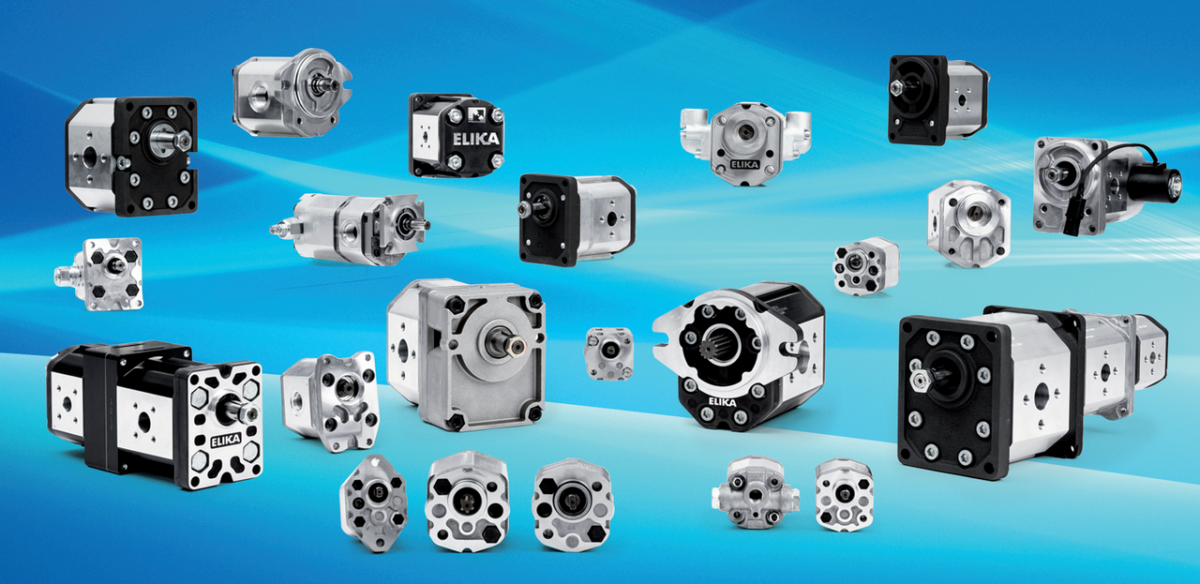

Various gear pump models

ALP model

ALP model Marzocchi gear pumps are equipped with an aluminium pump housing, flange and cover. The special highly resistant aluminium alloy minimises distortion at

maximum operating pressure or peak pressures. The gears are made of hardened steel with a special surface treatment. This product design, combined with the cog shape, ensures the lowest possible noise level during operation.


ALP gear pumps are available in 4 different assemblies: group ALP1, ALP2, ALP3 and ALP4. In addition, the ALM pump is also very suitable for mobile applications due to its relatively low weight.

GHP model

GHP model Marzocchi gear pumps are specially designed for applications with higher operating pressures. These pumps are equipped with an aluminium pump housing.
This housing is made of a special high-resistant aluminium alloy for minimal deformation at maximum operating pressure or peak pressures. The pump flange
and cover are made of high quality cast iron. The gears are made of hardened steel with a special surface treatment. This product design, combined with the

cog shape, results in the lowest possible noise level during operation.


The GHP gear pumps are available in 3 different assemblies: group GHP1, GHP2 and GHP3.

Marzocchi multi gear pumps

ALP and GHP gear pumps by Marzocchi are also available as multi pumps. The pumps
are connected with a specially designed baying kit. This allows for gear pumps

from different assemblies and models (ALP or GHP) to be coupled.


There are two assembly forms. The compact design and a modular design. Since the compact design allows for many possible combinations, we have a limited stock

of them. The modular design has ample stock.

ALM gear motors

ALP model Marzocchi gear pumps are equipped with an aluminium pump housing, flange and cover. The special high-resistant aluminium alloy ensures minimal distortion at maximum operating pressure or peak pressures. The cogs are made of hardened steel and have a special surface treatment. Like the ALP and GHP models, this product design ensures the lowest possible noise level when the device is in operation.

ALM gear motors are available in 3 different assemblies: group ALM1, ALM2 and ALM3. In addition, the ALM gear motor is also very suitable for mobile applications due to its relatively low weight.

GHM gear motors

GHM model Marzocchi gear motors are specially designed for applications with higher operating pressures. These pumps are equipped with an aluminium motor housing, made of highly resistant aluminium alloy for minimal deformation at maximum operating pressure or peak pressures. The motor flange and cover are made of cast iron.


The gears are made of hardened steel and the surface has been specially treated. This product design combined with the cog shape results in the lowest possible

noise level during operation.


GHM gear motors are available in 3 different assemblies: group GHM1, GHP2 and GHM3. All Marzocchi gear motors, both the ALM and GHM models, undergo a functional test at the factory, which ensures good starting performance.

Direction of rotation

All Marzocchi gear pumps are standard available in both clockwise and counterclockwise versions. In addition, the motors are also available in a 2-directional version. In the latter case, an oil leakage connection is required.

Elika gear pumps (low-noise)

Marzocchi also has a product line of pumps with helical gearing. These pumps are particularly quiet (-15dBA), have significantly less pulsation on the pressure
side of the pump and have a higher efficiency at lower speeds. In cases where the noise level is relevant, these pumps are an interesting alternative to the Marzocchi ALP and GHP models.


The Elika pumps are available at Eurodynamica Hydraulics in pump group 2 and pump group 3.

If you would like more information, don`t hesitate to contact Eurodynamica Hydraulics in The Netherlands

Would you like more information about the Marzocchi gear pumps? Or do you have a question about stock and delivery? Don’t hesitate to contact us. We will be happy to answer your questions.
